SCREEN PRINTERS

" Designed for diverse precise screen printing applications in electronic component production such as: LTCC, MLCC, Inductor, Diverse printing circuits, Hybrids, etc."



-----------------------------------------------------------------------------------------------------------------------------------------------------

AUTOMATIC SCREEN PRINTERS:


  • For more demanding applications
  • Automatic sheet handling, printing, drying process
  • Two models available to meet all customer requirements
  • Fully programmable printing parameters
  • Print/print, print/flood, flood/print, on contact print
  • stencil printin via filling and screen cleaning printing
  • Extensive options for demanding advanced technology
    application
  • Available options:
    • Via filling
    • Stencil frame for stencil tensioning and quick fixing
    • Custom printing tables and substrate fixing
    • Cameras in printer + cross line software for easy alignment screen
    • Dryer options
    • Antistatic substrate cleaning before printing
    • Automatic paste supply
    • Not all possible options listed
    • For low viscosity pastes only
    • Trough hole printing

TECHNICAL DATA please download Automatic Screen printers P-series



Please click here to contact us regarding Automatic Screen printers P - series



-----------------------------------------------------------------------------------------------------------------------------------------------------

MANUAL SCREEN PRINTERS

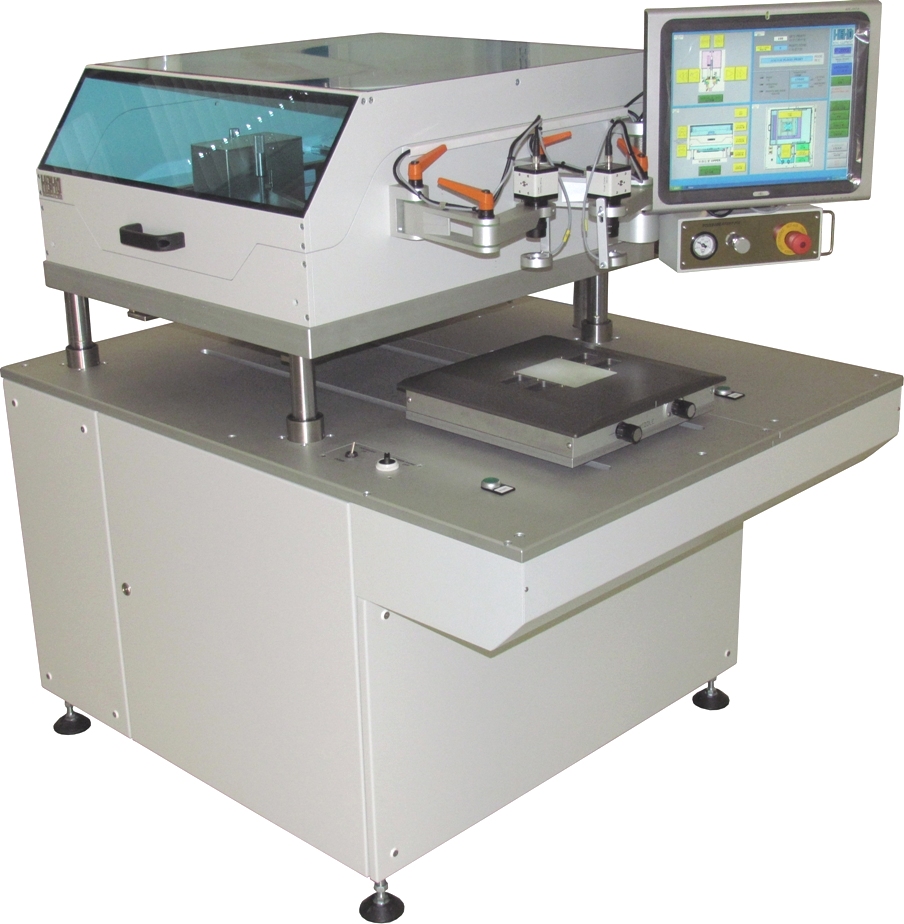

ADVANCED MODEL:

  • A fully featured with wide range of available options
  • Servo motor driven squeegee assembly
  • Servo motor driven printing table
  • Stepper motor adjustable printing table (x, y, theta)
  • Joystick printing table control for manual operations
  • Stepper motor automatic/programmable snap off adjustment
  • Pneumatically screen fixing
  • Automatic printing table alignmentby PC based vision system
  • All printing parameters programmable via touch screen
  • PLC control ( Call/save 99 Recipes)

  • Options:
    • Custom designed printing table for fixing different printing circuits or carrier blocks.
    • Automatic paste supply.
    • Stencil tensioning frame and fixing
    • Different squeegee types, diamond type, double squeegee.
    • Optionally: elimination elektrostatic electricity
TECHNICAL DATA please download Screen printers P-series


Please click here to contact us regarding Manual Screen printers P--series



--------------------------------------------------------------------------------------------------------------------------------

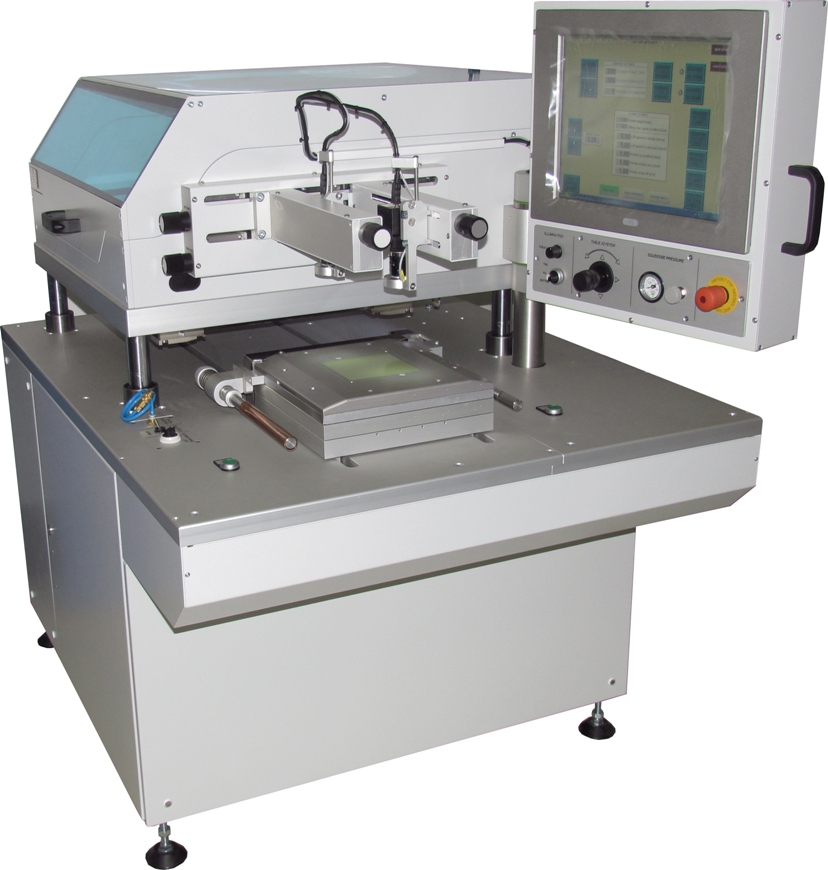

STANDARD MODEL:

  • For more demanding applications
  • Servo Motor driven squeegee assembly
  • Pneumatically driven vacuum printing table with shock absorbers.
  • Screen X,Y, theta adjustment by micrometer screws
  • Automatic adjustable snap off distance
  • Two USB camera, cross line software
  • PLC control ( Call/save 99 recipes)
  • PC+touch screen for settings and alignment
  • Options:
    • Custom designed printing table for fixing different printing circuits or carrier blocks.
    • Intermediate frame with pneumatic screen fixing.
    • Stencil tensioning frame and fixing
    • Automatic paste supply.
    • Different squeegee types, diamond type, double squeegee.
    • Optionally: elimination elektrostatic electricity

TECHNICAL DATA please download Screen printers P-series


Please click here to contact us regarding Manual Screen printers P-series





----------------------------------------------------------------------------------------------------------------------------------

BASE MODEL:


Standard machine is equipped with:
  • Affordable machine for general screen printing application
  • Pneumatically driven vacuum table with shock absorbers
  • AC motor driven squeegee assembly
  • Screen X,Y, theta adjustment by micrometer screws
  • Automatic adjustable snap off distance
  • Movable registration pins for positioning
  • PLC control
  • No cameras for alignment
  • No via filling possible
  • Optionally: elimination elektrostatic electricity
  • Options:
    • Custom designed printing table for fixing different printing circuits or carrier blocks.
    • Intermediate frame with pneumatic screen fixing.
    • Different squeegee types, diamond type, double squeegee.
    • Optionally: elimination elektrostatic electricity
---------------------------------------------------------------------------------------------------------------------------------

 ROLL TO ROLL PRINTER



"Suitable for MLCC, MLCV mass production applications:

Roll to roll printer RTP-10 "

 Machine is designed to reel to reel print electrode pattern on to ceramic foil cast on carrier film (mylar). Punches registration holes (if needed) on edges of mylar tape and dry the print.


  • Suitable for MLCC, MLCV mass production applications
  • Automatically prints A/B pattern
  • Checks print quality by two CCD automatically
  • Well suitable for high layer count application
  • Punches registration holes for precise registration on stacker
    •
      --------------------------------------------------------------------------------------------------------------------------------

     SHEETS DRYER

    "Dry individual ceramic sheets after printing with SD-3"

    Tunnel type sheet dryer is designed to dry individual ceramic sheets after printing.

    • High air flow ensure high drying efficiency.
    • Sheets are transported by stainless steel chain trough a heating tunnel.
    • Two 6x6 (8x8) inch sheets can be placed on to the drying chain next to each other to increase the drying time.
    • Adjustable internal and fresh airflow circulation.
    SD-3 is suitable for all series P printers.

        TECHNICAL DATA  please download SD-3
