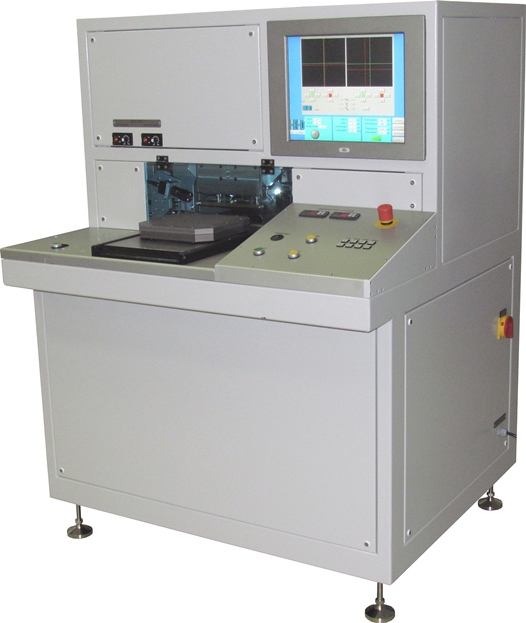

Cutting machine

"High-accuracy, High speed, fully vision control"





  • Cuts the most difficult, high thickness green Ceramic Ware
  • Automatically positions knife with high accuracy
  • Automatically finds cutting markers
  • Adjustable speed and cutting depth
  • Quick change and alignment of cutting blade
  • Warning function for blade wear and replacement
  • High productivity due to high cutting speed

Technical specifications

Technical specifications

Cutting Machine

up to 12000 cuts/h without vision function

up to 4500 cuts/h with complete vision function

up to 8000 cuts/h for vision function on every 4cut

Table size (typical)

250 x 250 mm (10 x 10 inch)

Vacuum table area (max.)

10 x 10 inch

Size of bars (max.)

10 x 10 inch

Cutting blade

different heights & thickness

Standard blade length

205 mm (8 inch)

Safety

CE compliant

Electrical connection

according to customer requirements
typical: 200 – 240 V~, 50/60 Hz, 20 A, app. 2 kW

Bar handling

manual by operator
automatic from/to cassette

Pre-heating table

OPTION

Post-heating table

OPTION

internal Vacuum generator

OPTION
