Stacking machines - Sheet Stackers

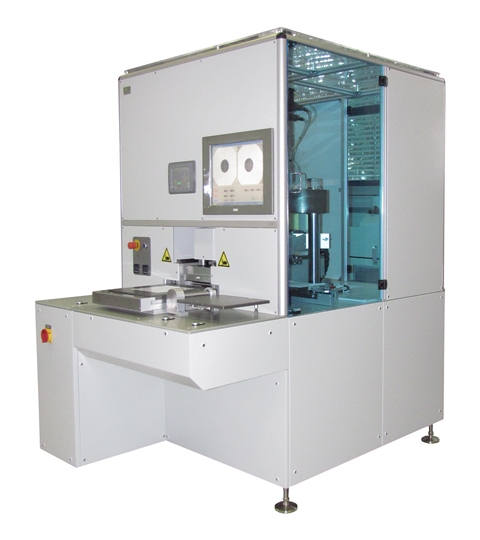

Stacking machines SW-Series



"SW stacker suitable for labs to medium production volumes"







  • Universal manual stacker for LTCC, HTCC or other similar components production
  • Suitable for tapes with, or without carrier film
  • Process on one carrier pallette
  • Possible to start building stack from top or from bottom
  • Simple operation

Technical specifications

Technical specifications

SW-Series

Number of carrier block processed

1

Stacking forces

up to 420 kN (optionally 200kN or 700kN)

Stacking temperature

up to 80 °C (176 °F)

Typical cycle time:

15 sec. (depends of stacking time)

Control

LC+PC for vision acquisition

Number of vision cameras

2

App. dimensions

L x W x H: 1,8 m ( 70 inch) x 1,3 m ( 51 inch) x 2,0 m ( 79 inch)

Electricity

according to the customer requirements

Power

app. 5 kW

Compressed air

0,6 MPa, 200 L/min

Vacuum

0.09 MPa (0.02 MPa absolute), 200 L/min.

Options

rotation station, vacuum pump, programable
