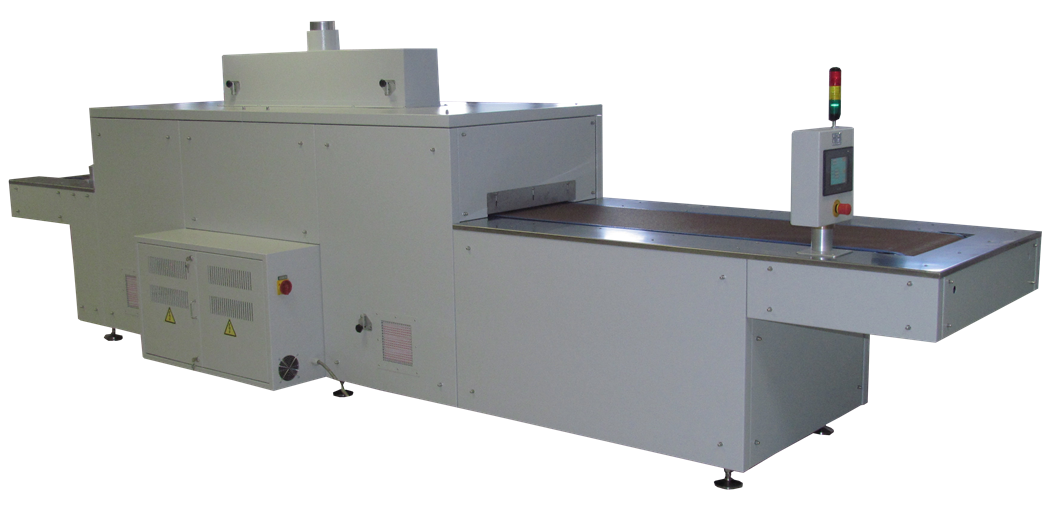

Sheets Dryer

SD

Driers

Purpose

Drying with high hot-airflow.
Suitable for green ceramic sheets

Drying zone length(mm/inch)

1600/62

Belt Width (mm/inch)

300, 450/ 12, 18

Belt speed (m/min.)

0.05 - 6.0

Drying temperature (°C)

up to 120(depens of air flow)

Air flow (m/min.)

up to 12(including aircirculation)

Exhaust

Tube diameter Ø 130 mm

App. dimensions

2.4 m ( 95 inch) x 1.0 m ( 39 inch) x 1.7 m ( 67 inch)

Terminal power

Depending on application and drying regime.Voltage: on request

Options**

2.4 m ( 95 inch) x 1.0 m ( 39 inch) x 1.7 m ( 67 inch)

SDI

Purpose

Hot air flow + ceramic IR heaters combination
Suitable for hybrids and similar products

Drying zone length(mm/inch)

1600/62

Belt Width (mm/inch)

300, 450/ 12, 18

Belt speed (m/min.)

0.05 - 6.0

Drying temperature (°C)

up to 250

Air flow (m/min.)

up to 12(including aircirculation)

Exhaust

Tube diameter Ø 130 mm

App. dimensions

2.7 m ( 106 inch) x 1.1 m ( 43 inch) x 1.4 m ( 55 inch

Terminal power

Depending on application and drying regime.Voltage: on request

Options**

2.4 m ( 95 inch) x 1.0 m ( 39 inch) x 1.7 m ( 67 inch)

DRI

Purpose

IR drier with IR lamps
Suitable where fast drying is required using IR lamps

Drying zone length(mm/inch)

1200/47

Belt Width (mm/inch)

300, 450/ 12, 18

Belt speed (m/min.)

0.05 - 6.0

Drying temperature (°C)

up to 350
at 15kW medium wave IR lamps

Air flow (m/min.)

6

Exhaust

Tube diameter Ø 130 mm

App. dimensions

2.7 m ( 106 inch) x 1.1 m ( 43 inch) x 1.4 m ( 55 inch

Terminal power

Depending on application and drying regime.Voltage: on request

Options**

2.4 m ( 95 inch) x 1.0 m ( 39 inch) x 1.7 m ( 67 inch)
