Tape Casting Machines - Horizontal Drying Zone

Laboratory Tape Casters L-Series

"Designed to cast slurries in labs or small scale productions"

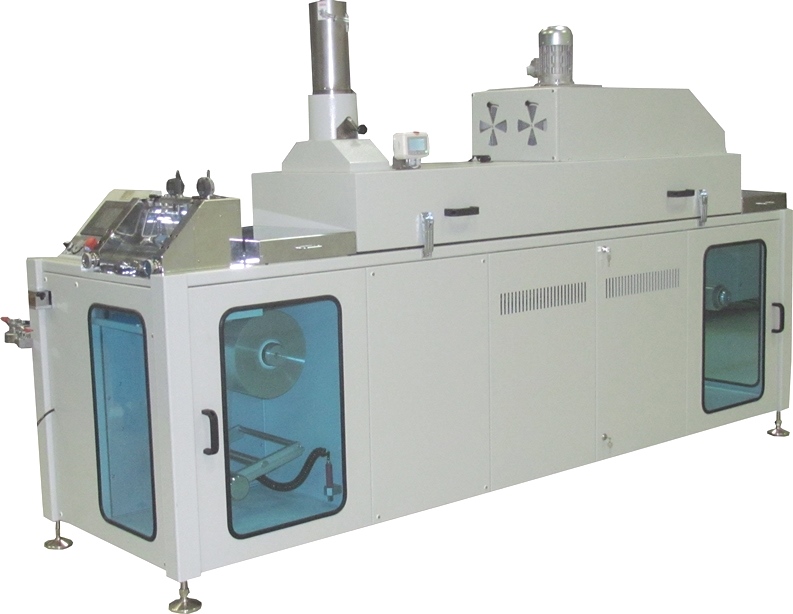

Tape casting machine CAM-L252TB
       1     2



  • Casting gap is manually adjustable by micrometer screws.
  • Carrier film is unwounded from a roll with adjustable torque control, which determines carrier tape tension.
  • High precision doctor blade and granite bottom ensures high precision casting down to 10 micrometers.
  • Slurry level in a fully covered Teflon casting box is determined by height of inlet slurry tube.
  • Amount of fresh air and exhausted air is adjustable by flappers.
  • Optionally: hot air inlet and/or bottom plate heating for more efficient drying.

Technical specifications

Technical specification

Laboratory Tape Casters L-Series

Casting speed

0.1-3 m/min

Carrier tape width

250mm max. (10inch)

Casting width

up to 220mm max. (8inch), depends oncasting box width

Blade gap setting

0to 5 mm range

Drying section length

from 2 up to 4m, available in 1m steps

Your web browser doesn't have a PDF plugin.
Instead you can click here to download the PDF file.

Interested and want to know more?

Do not hasitate to contact us. We will inform you more about our products, materials and our capabilitiest.
