Stackers

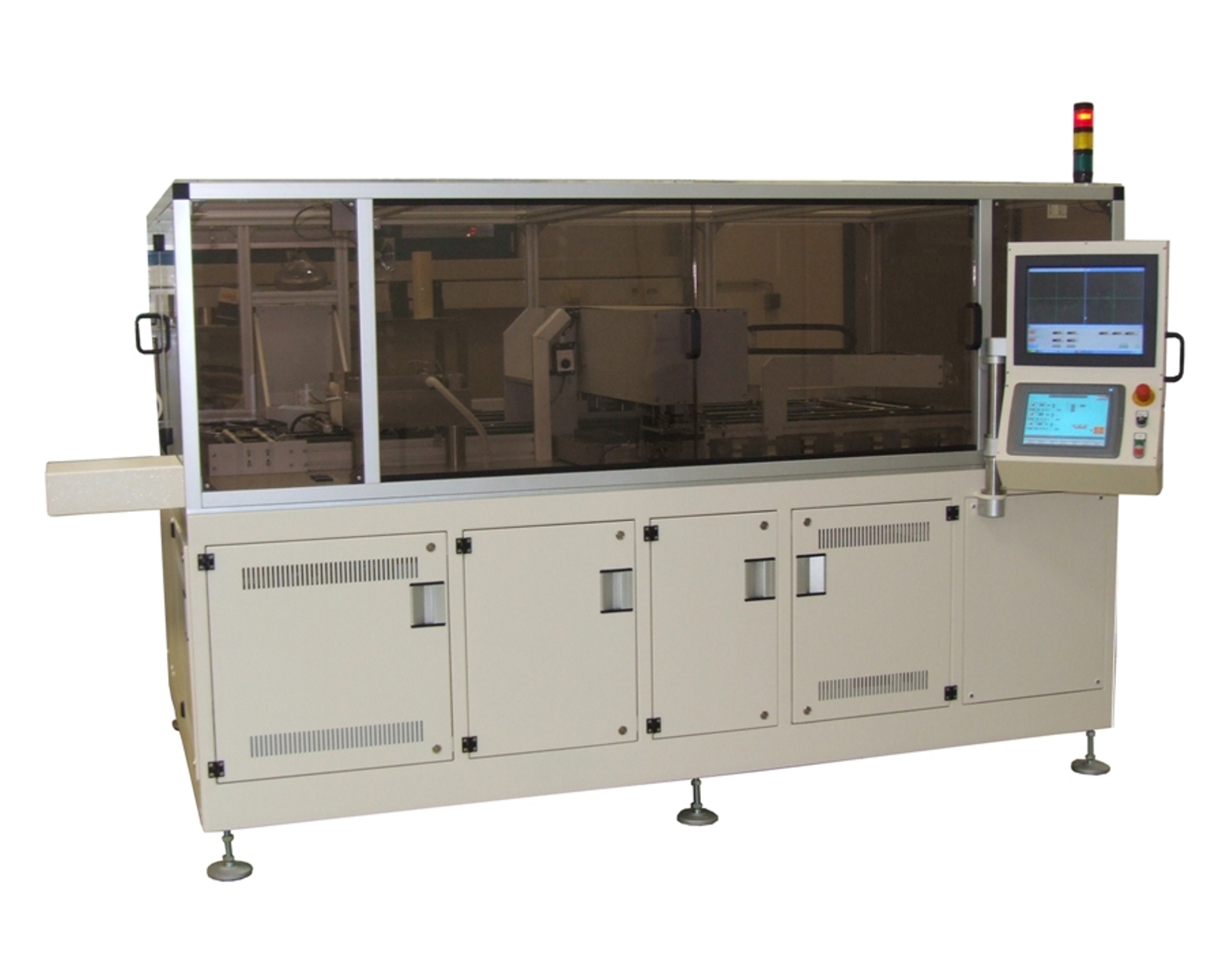

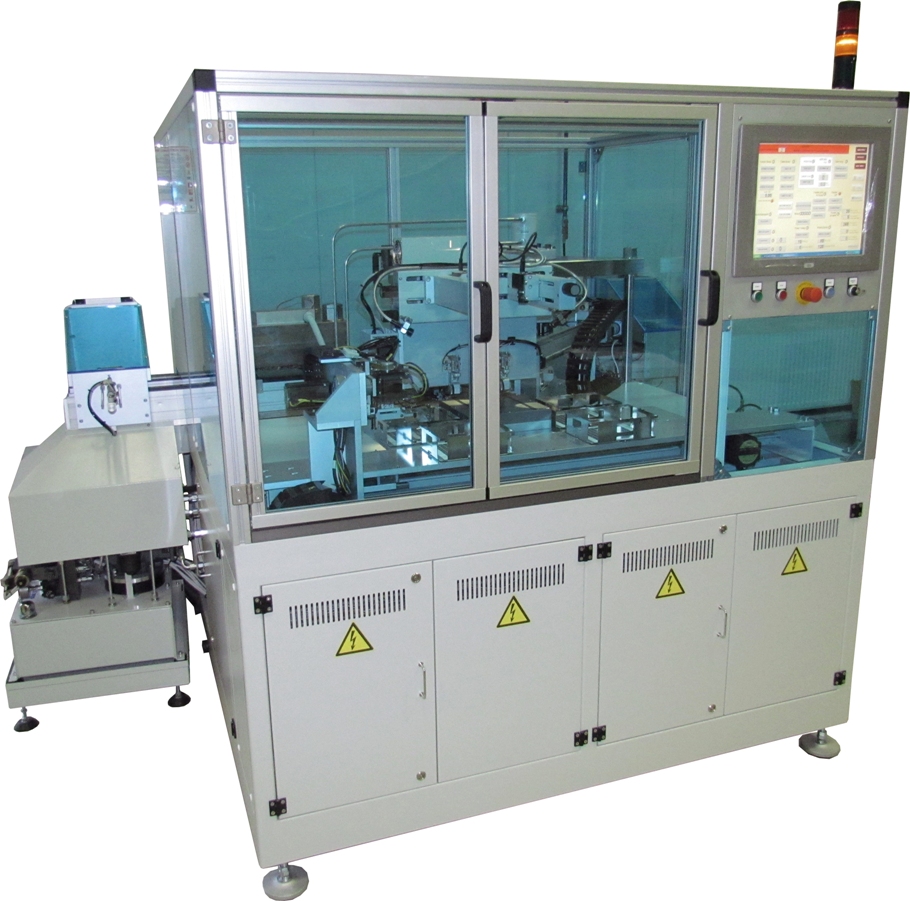

Typical cycle time: 8 s (with typically s pressing time) Up to 24 carrier blocks (palettes) can be processed at the same time on the machine. Carrier blocks are loaded in to carrier block cassette and automatically loaded on to the transportation track. Automatically stacks green ceramic sheets from foil cassettes, for 8 (up to 16) different foil pattern. Automatically removes carrier film High stacking force  Short cycle time Suitable for large production volumes Positioning pin or CCD Vision sheet alignment Well suitable for LTCC applications Mylar removal station after tacking. Press with paper insertion to achieve a uniform surface and higher layer count.

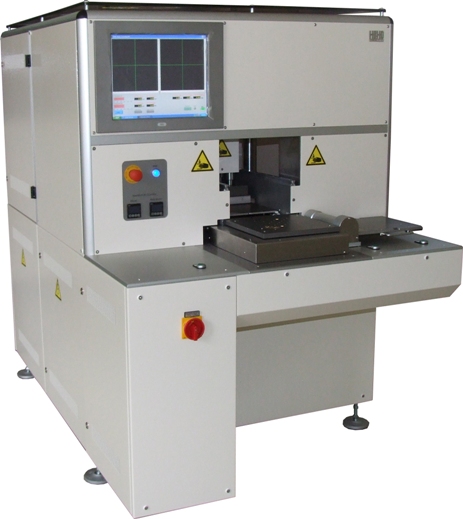

SB-6AP

  To view technical data  please download Stacking machine ST-series pdf data sheet (click here).
Please click here contact us regarding ST-series

--------------------------------------------------------------------------------------------------------------------------------

Cover sheet makers are unique in the world because of their simplicity and the cost saved in the production of multilayer ceramics.

The automatic sheet maker uses carrier tape technology, and/or freestanding tape technology. Carrier films are automatically removed by the Keko Equipment patented technology.

Sheets are accurately positioned and pressed to form a stack of cover sheets. The saving, realized by automatically stacking and pressing coversheets off-line from the printing and stacking operations, have made the coversheet maker very successful.

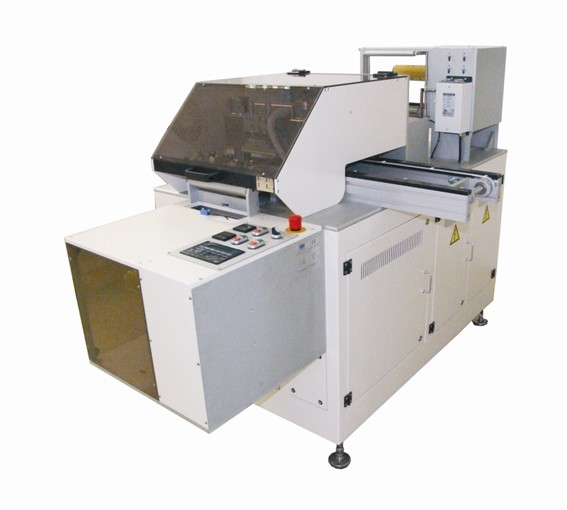

In the case of carrier-based tape (CSM-2) the tape is laminated in the press onto the stack of cover sheets.

A special patented process removes the carrier film.

Positioning of sheets on the stack of coversheets is performed with high accuracy to optimize usage of the precious tapes.

The process is fully controlled by software enabling you to stack the desired numbers of sheets under your optimal process conditions.

The process computer allows you to store standard recipes for preparation of coversheets.
CSM 3 uses free standing tape.

A belt system automatically transports the carrying plate to the position for dispensing of the sheets from the roll.

A programmed number of freestanding tape sheets are cut from the roll and placed by a vacuum hand onto the stack of coversheets.

The plate is moved on the belt into the press for lamination of the sheets together and glueing onto the plate.

The CSM-3 can automatically load and unload up to 33 blocks from a cassette. The cassettes can then be conveniently placed in your PAL-9 printer stacker to continue the process.

After the active layers are placed and printed the cassettes can be returned to the CSM for preparation and lamination of the top coversheets onto the ready stack.

If your applications require a new feature to be added onto the machine, we will design and build the machine to accommodate this feature, working closely with you to make sure your performance expectations are met.

To view specifications and available options  please download CSM2/CSM3 pdf data sheet (click here).
Please click here to contact  us regarding Keko stackers
